Specification:
Item Type: Lithium Battery Percentage Meter
Material: PC
Model: PZEM 009
Voltage: DC8-100V
Screen: LCD
Measurement Accuracy: 1% (±1 word)
Battery Specification:
If you want to change the battery specification during use, you can set it yourself as follows:
Step 1: Press and hold the button for 1 second until the word 60VL appears on the screen (the exact display varies depending on the battery specification), then release the button.
Step 2: Press the button briefly to select the battery specification
Step 3: Press and hold the button for 1 second or stop the button action for 2 seconds to save the data and return to the normal display surface.
Voltage Calibration:
The product is fully calibrated before leaving the factory, or you can calibrate it yourself if you think there is a deviation as follows:
Step 1: Press and hold the button in case of power failure
Step 2: Input standard DC20V voltage
Step 3: LCD will display CAL PASS and return to normal display interface, indicating successful calibration, then release the button.
Splashproof Function: The product panel is embedded and sealed, and the panel part has splashproof function after installation.

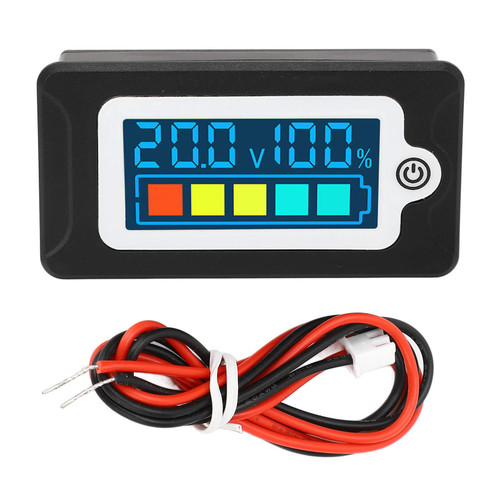

Color LCD Screen: Voltage and percentage and battery sign combination display.
How to Use:
To turn the monitor on or off, press the button briefly to turn the LCD monitor on or off.
packing list:

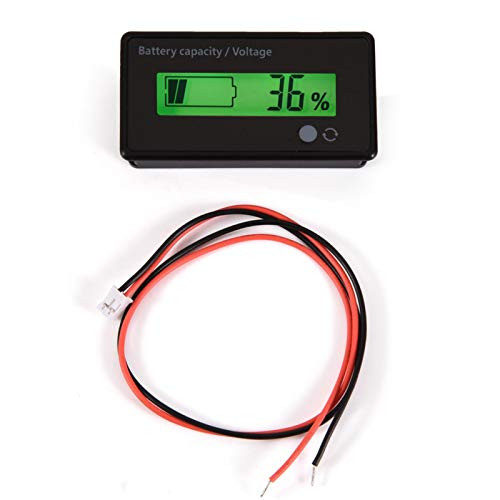

1 x Battery Voltage Percentage Tester
1 x Connecting Cable
1 x Manual
Note:
1. This product is only applicable to the measurement of 12V, 24V, 36V, 48V, 60V, 72V lithium iron or ternary polymers lithium batteries
2. This product is suitable for DC, not for testing AC
3. The battery voltage cannot exceed the calibration range
4. The product is splashing proof, but not submerged in water
