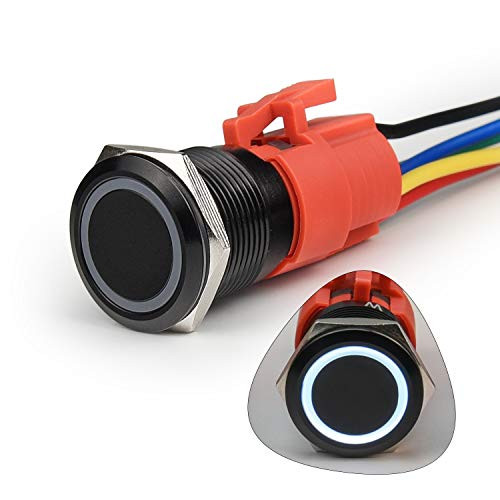

AutoEC 19mm LED Push Button Switch 5A 12V DC ONOff Blue Lights Pushbutton Latching Switch 1NO1NC SPDT Waterproof Metal Shell with Pigtail Socket for Car RV Truck Boat - Silver

Specification Voltage Rating: 12V DC Current Rating: 5A LED Pattern: Ring Indicator Operation Type: Latching Contact Configuration: 1NO 1NC Body Material: Aluminum Alloy Contact Material: Silver Alloy Protection Level: IP65, IK08 Mechanical Life: > 500,000 Cycles Electrical Life: > 100,000 Cycles Mounting Hole Size: 0.75" (19mm) Head Diameter: 0.83" (21mm) Button Diameter: 0.63" (16mm) Thread Depth: 0.4" ( 10mm) Depth Inc Contacts: 1.3" (34mm) What's the Latching Switch? The Latching switch will remain on once it is pressed and stay on until it is pressed again. Ring LED Light The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it Easy to Install Red: Positive LED PIN + Black: Negative LED PIN - Yellow: NO(Normal Open Pin) Green/White: NC(Normal Closed Pin) or C(Common Pin); This depends on the direction in which the switch is installed, please note the sign next to the pin. IP65 Waterproof As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc. Used Widely Auto/Boat Refit: Replace the light switch, such as critical lights, chassis lamp, fog lamps, dome lights, or other control switches. Outdoors: Replace the door bell, entrance guard push button switch. Household Applicances Control: Replace the table lamp switch, PC switch, Audio switch. Package Include 1* Push Button Switch 1* Pigtail Connector Note The switch come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
