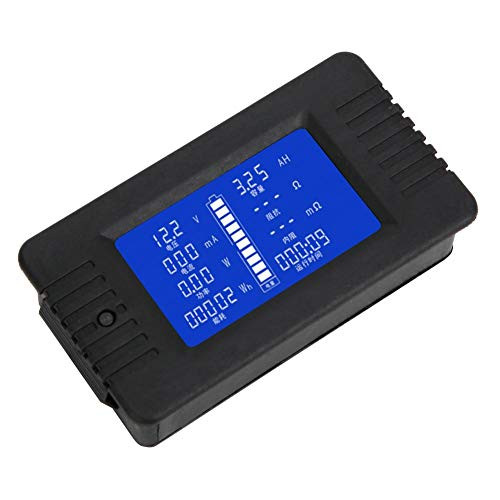

AUTENS DC Battery Monitor Meter with LCD Display 0 200V 0 300A Voltage Current Power Energy Impedance Resistance Capacity Multimeter Ammeter Voltmeter Digital Tester with 300A Shunt With 300A Shunt

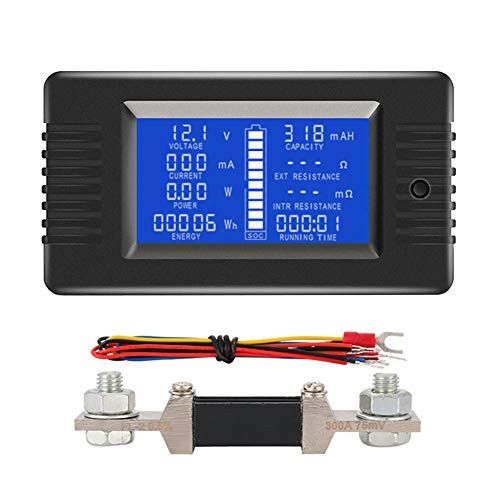

AUTENS Multifunction Battery Monitor Meter ?Voltage Measure range: 0-200V Display: <10V, display 9.99V; <100V, display 99.9V; ?100V, display 199V Min.Resolution: 0.01V Start test voltage: 0.05V Accuracy: 1% ?Current Measure range: 0-300A. Display: <1A, display 999mA; <10A, display 9.99A; <100A, display 99.9A; ?100A, display 199A Min.Resolution: 1mA Start test current: 20mA Accuracy: 1% ?Power Measure range: 0-60000W Display: <10W, display 9.99W; <100W, display 99.9W; <1000W, display 999W; <10000W, display 9.99kW; ?10000W, display 19.9kW Min.Resolution: 0.01W Start test power: 0.2W Accuracy: 1% ?Impedance: Impedance=voltage/current Measure range: 0-1000? Display: <100?, display 99.9?; ?100?, display 999? When over the range or current is 0 displayed "---". Min.Resolution: 0.1? Accuracy: 1% ?Running time Range: 0-999 hr(no load no time) Display: 0:00:00-999:59 Notice 1. This module is suitable for indoor, please do not use outdoor 2. Applied load should not exceed the rated voltage, current. 3. Wiring order can't be wrong Package 1 * Battery Monitor Meter 1 * DC 300A Shunt 6 * Wire 1 * Instruction manual
