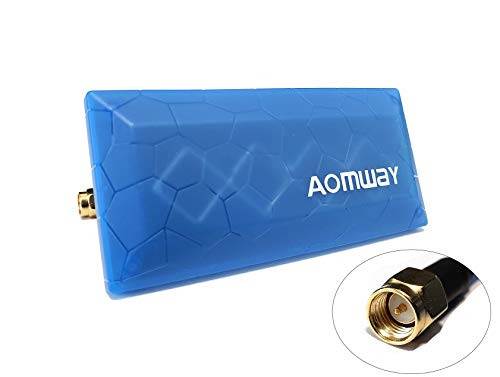

This Aomway directional patch antenna is made for FPV receiver/Goggle only, suit for long range flying.
The effective angle is about 40 degrees, with silver-plated enamel wire and 24K gold-plated interface. Ensure that the standing wave and all relevant parameters meet the standard.
Net weight of the antenna: 25g
Gain: 13db
Impedance: 50 ohm
Axial ratio: ?1.5
Vertical polarization
Angle: H 40 ; V40
Center frequency: 5.8GHZ
Made of copper wire + high frequency pcb board
Dimensions: 103*47*10mm
SMA connector
Cable size: 75mm semi-steel semi-flexible wire
Aomway High Gain 13db RHCP FPV Directional Antenna Panel Patch Antenna for FPV Receiver Goggle Monitor Skyzone 02s SKY03 eachine ev800d EV200D EV100 VR006 FatShark HDO HD3 Aomway Commander SMA
Was:
$67.48
Now:
$33.74
- SKU:
- K31431
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
