AM2315 I2C Temperature and Humidity Sensor Digital Temperature and Humidity Sensor Probe Signal Output Temperature Meters Gauge Sensor Module Board Humidity Sensitive Module

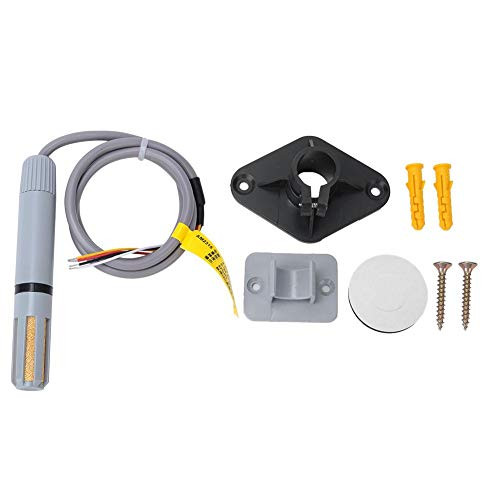

The AM2315 communication method uses standard I2C communication. The I2C communication mode adopts standard communication timing, and the user can directly hang on the I2C communication bus without additional wiring and is simple to use. The transmitted digital data directly outputs the temperature-compensated digital information such as humidity, temperature and check CRC. The user does not need to perform secondary calculation on the digital output, nor does it need to compensate the humidity for temperature, so that accurate temperature and humidity information can be obtained. Specification: Condition: 100% Brand New Item Type: Temperature And Humidity Module Product Model: AM2315 Supply Voltage: 3.3-5VDC (recommended 5V) Output Signal: Digital Signal Single Bus / I2C Humidity Range: 0-99.9% RH Temperature Range: -40-125 ° C Humidity Detection accuracy: ±2% RH Temperature Detection accuracy: ±0.3'C Resolution: 0.1 °C 0.1% RH Power Consumption: 300?A on average Response Time: 5s Module Weight: 32.5 g / 1.1 oz(approx.) Package List: 1 x Temperature and Humidity Module 1 x Gray Holder 1 x Black Holder 2 x Expansion Screw 2 x Ordinary Screw 1 x Foam Disc
