Specifications:
Input voltage: 5V
Power supply: 5V Camera @ under 0.3A max.
Output power: 25mW/200mW
Antenna connector: MMCX
Cable connector: Solder pads
Dimensions: 20x25 mm
Weight: 3.5g(excluding antenna)
Package includes:

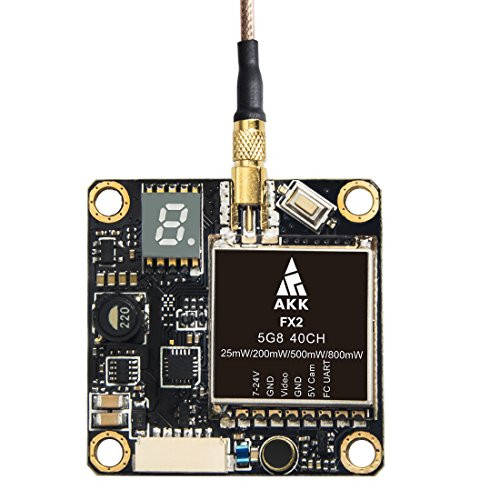

1x Race VTX
1x MMCX to SMA antenna
1x Product manual
Pit Mode(0.01mW)
While in Pit Mode you can change channels and set power
levels, but none of these changes will take effect until you
quit Pit Mode. By default, Pit Mode will send a very weak signal.
Slow Power On
Interference-free while powering on.
Notice:
5645,5925,5945(E4,E7,E8) channels are not available due to FCC regulation.
Selecting 5645/5925/5945(E4/E7/E8) will be invalid action.
