Description:
This is a dual demodulating log amps and phase detector. Input range -60 dBm to 0 dBm in a 50 ? system. Accurate phase measurement scaling (10 mV/degree) measurement/controller/level comparator modes operates from supply voltages of 3.3v~5V stable 1.8 V reference voltage output small signal envelope bandwidth from DC to 30 MHz. Widely used in RF/IF PA linearization.
Specification:
Model: AD8302
Supply Voltages: 3.3v~5V
Input Range:-60 dBm to 0 dBm(50 ?)
Measures Gain/Loss and Phase: Max. 2.7 GHz
Reference Voltage Output: 1.8 V
Size: 5×3.5cm/2×1.4in
Weight: Approx.8g/0.3oz
Package List:

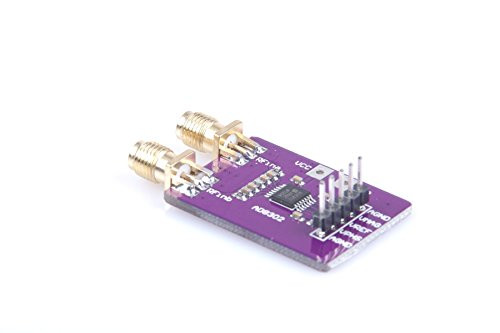

1 × AD8302 Amplitude Phase RF Detector
AD8302 RFIF Phase Detector Module LF27G Phase Detection Bandwidth Module
Was:
$69.26
Now:
$34.63
(No reviews yet)
Write a Review
Write a Review
AD8302 RFIF Phase Detector Module LF27G Phase Detection Bandwidth Module
- SKU:
- R415502
- UPC:
- 794419329851
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
Add to Cart
