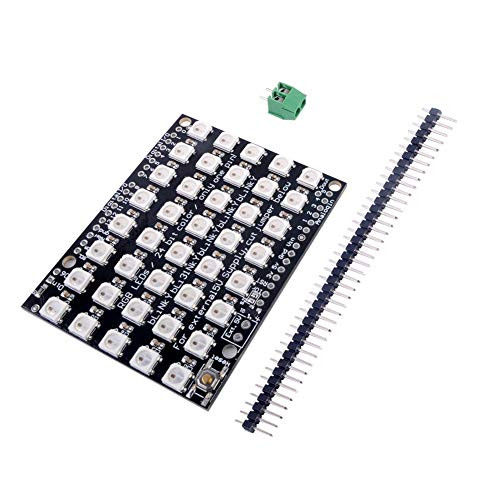

5X8 WS2812 5050 40 Bits RGB LED WS2812 Pixel Matrix Shield for Arduino ESP8266 Raspberry PI

Description: Voltage:USB(on Arduino) or DC4-6V 40 RGB LEDs Chip: WS2812 Main feature? 1. Intelligent reverse polarity protection, reverse polarity of power supply will not damage IC. 2. Integrated circuit control circuit and power LED spotlight. 3. The control circuit chip with RGB components in the 5050 package forms a complete external control pixel. 4. Built-in signal shaping circuit, any pixel passes waveform after receiving signal. Shaping and outputting to ensure that line waveform distortion does not accumulate. 5. Built-in power-on reset and Brown external reset circuit. 6. Each pixel's three primary colors can achieve 256 highlights, complete all true color display of 16,777,216 colors, and the scanning frequency is not less than 400hz/s. 7. Serial cascade interface, complete data receiving and decoding through signal line. 8. The transmission distance between any two points is less than 5 meters. 9. When the refresh rate is 30 frames / second, the number of cascades is not less than 1024 points. 10. Data transmission speed is up to 800kbps. 11. The color of the light is highly consistent and cost-effective. Package Includes: 1 X 8X5 WS2812 5050?40 Bits RGB LED
