Specification:
Model: YL-180W
Dimensions: 135x90x50mm
Color/Material: Black/Aluminum Case
Suitable for Battery type: 13S 48V Li-ion Battery
AC Input: 100~240Vac, 50/60Hz
Output voltage: 54.6V
Output current: 2A
Battery Protection: SCP,OVP,OCP,OTP
Charging mode: constant current - Constant Voltage - trickle (floating charge) three-stage intelligent charging
Charging efficiency: ?85% (full load)
Working temperature: -5 ? ~ +40 ?
Storage temperature: -40 ? ~ +70 ?
AC power cord, DC connector can be customized.
Operating Instruction
1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.
2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.
3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.
LED Indicator:
LED 1 red: Power on.
LED 2 red: Battery being charged.
LED 2 Flash: Battery will be charged completely soon.
LED 2 green: Battery has been charged completely.
Package:

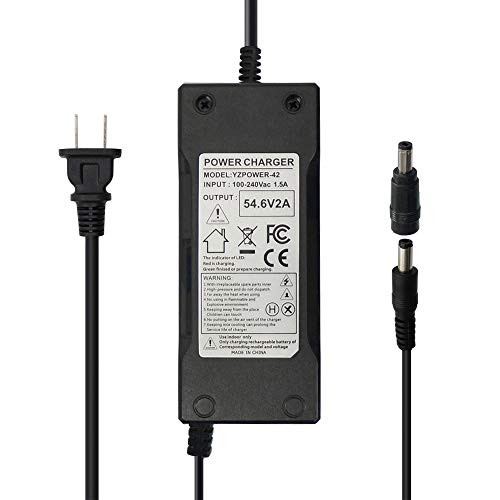

1* 54.6V 2A charger
1* US standard power cable
1* Operating manual
2* Fuse for replacing
