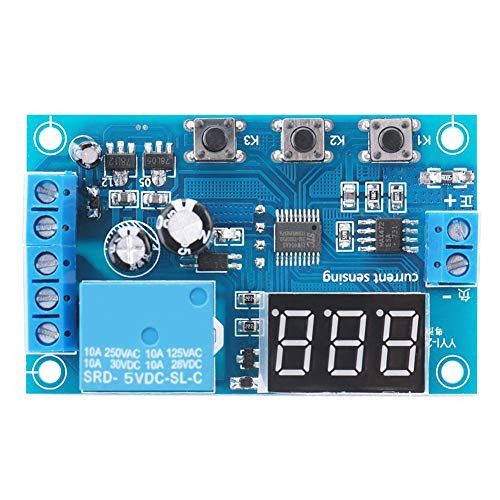

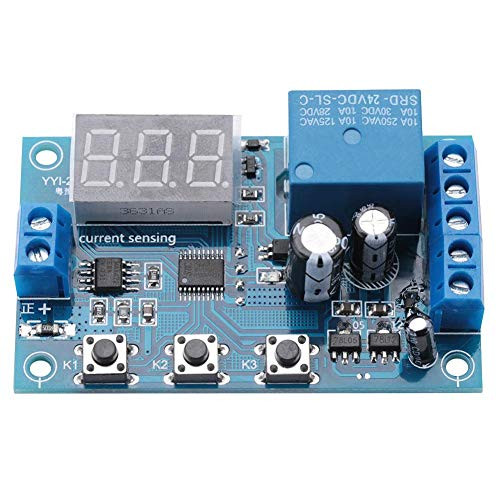

5/12./24V 0-10A DC Current Detection Module Current Sensing Module Overcurrent Protection Relay Module (24V)

Specification: Model: YYI-2 Supply voltage: DC 5/12/24V (Optional) Detection range: DC 0-10A Accuracy: 0.01A (10mA) Standby current: About 20mA Weight: Approx. 28g Function description: P-11: When the measured current > I1 (low limit current), the relay closed; When the measured current < I1, the relay opens; P-12: When the measured current > I1, the relay closes; Maintain the state until the circuit board power off; P-21: When the measured current > I2 (high limit current), the relay closes; When the measured current < I1, the relay opens; P-22: When the measured current > I2, the relay closes; Maintain the state until the circuit board power off; P-31: When measured < I1, the relay closes; When the current > I2, the relay opens; P-32: When the measured current < I1, the relay closes; Maintain the state until the circuit board power off; P-41: When the measured current is between I1 and I2, the relay closes, opens in other cases; P-42: When the measured current is between I1 and I2, the relay closes; Maintain the state until the circuit board power off; P-51: When the measured current < I1 or > I2, the relay closes, opens in other cases; P-52: When the measured current < I1 or > I2, the relay closes; Maintain the state until the circuit board power off. Package list: 1 * DC Current Detection Module
