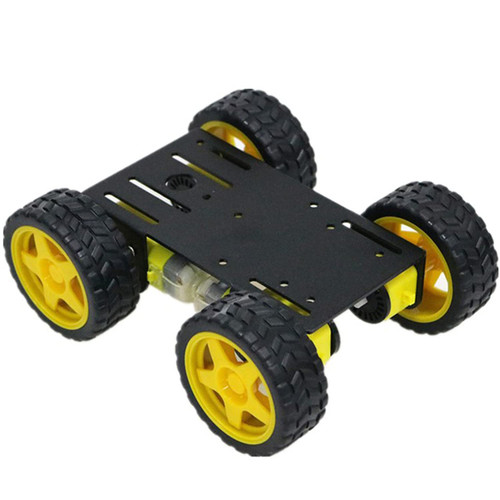

4wd Robot Car Chassis Kit with Metal Robotic Frame and 4pcs TT Encoder DC Motor for Arduino/Raspberry Pie/Microbit, DIY Remote Control Mobile Moving Robotics Platform for Maker Education Spy Monitor

Introduction To make the car move, we need to convert electrical energy into mechanical energy, and finally become the kinetic energy of the car. The kinetic energy of the car is provided by four DC motors, and the motor drive module controls the motor movement. The module is connected with Arduino uno or other controllers and is responsible for receiving signals to drive the motor movement. Of course, it is indispensable to provide enough power for the drive module. In the 4-drive car, all the power is provided by two 18650 lithium batteries, This system is called motor drive system. Product Parameters Product Name: C101 Panel material: 2mm aluminum Product Size: 175 * 137 * 69mm Product weight: 0.37kg Load weight: 0-2kg Motor type: 1:48 reduction ratio TT motor Wheel: 65mm rubber plastic wheel Wheel and TT motor Parameters Product name: 65 rubber wheel Voltage 6V (recommended at 3-6V best) Motor specifications (choose one): Voltage : 6V no-load current : ?250mA no-load speed :240±10% rpm Voltage : 3V No-load current : ?170mA No-load speed :110±10% rpm Reduction ratio: 1:48 Reference wheel weight: 41g Reference motor weight:28g Package Included Chassis: 1pcs TT motor: 4pcs Wheels: 4pcs Screw Accessories: 1 set TT Motor Parameters : Note The reduction ratio of the TT motor is 1:48 by default. In order to facilitate transportation, the product is not assembled. More documents can be downloaded at gitnova.com. This car chassis is UNASSEMBLED for get the DIY interest.
