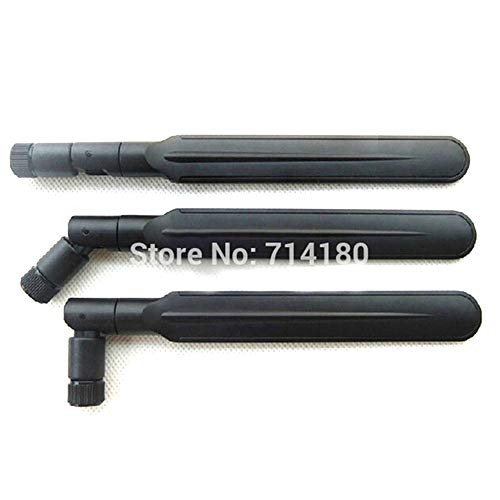

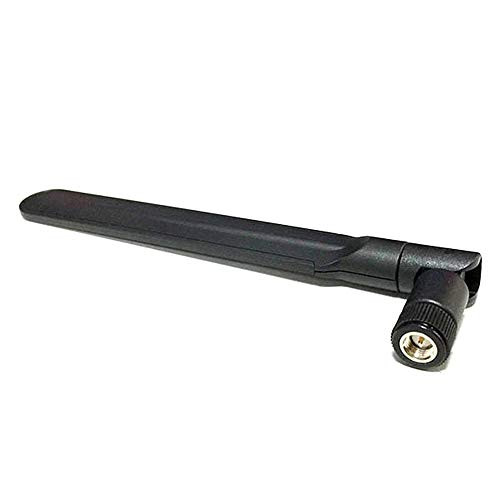

3G 4G LTE Dipole Antenna Wide Band 5dBi 698-2700Mhz Omni Directional GSM Wi-Fi SMA Male 4G Antenna with SMA Female to RP-SMA Male and SMA Female to SMA Male Connectors

3G/4G (LTE) Antenna Wide Band 5dbi 698-960/1710-2700MHz Omni Directional GSM Wi-Fi Antenna with FREE SMA Female to SMA Male and SMA Female to RP-SMA Male connectors for any Network Devices. Our LTE Antenna is made for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (2g/3g/4g) bands worldwide for routers, access points and terminals. The antenna is a ground plane independent antenna with a SMA Male connector and swivel mechanism that allows the antenna part to be rotated. The Apex exhibits high efficiency across the ultra wide band and is backward compatible with 2G and 3G cellular applications. With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance. PRODUCT FEATURES: - Product name : 3G/4G Antenna; - Part number : GSM-ANT-LTE-R; - Frequency Range-MHZ : 698-960/1710-2700 Mhz; - VSWR : ? 2.0; - Gain-dBi : 5 (Zenith); - Polarization : Linear; - Impedance : 50 ?; - Connector : SMA Male; - Dimension : 8.2 to 27 *222mm; - Net Weight : 20 g; - Radome Material : Plastic; - Operating temperature : -40°? ~ +85°?; - Vibration : 10 to 55 Hz with 1.5 mm amplitude 2 hours; - Environmentally Friendly : ROHS Compliant. PACKAGE INCLUDES: 3G/4G Antenna Wide Band 5dbi 698-960/1710-2700Mhz Omni Directional GSM Antenna with SMA Male Connector for HUAWEI CPE Router B593/B310/B880/E5172/E5175/E5186/B890 and ZTE MF253/MF283/MF25D/MF28G /MF28D. If the diameter of antenna is too large (dia: 8.2 to 27 mm) to fit into the holes of the routers, use an extra SMA Male to SMA Female adapter (included) to fix. For any specific devices and equipment use SMA Female to RP-SMA Male adapter (included)
