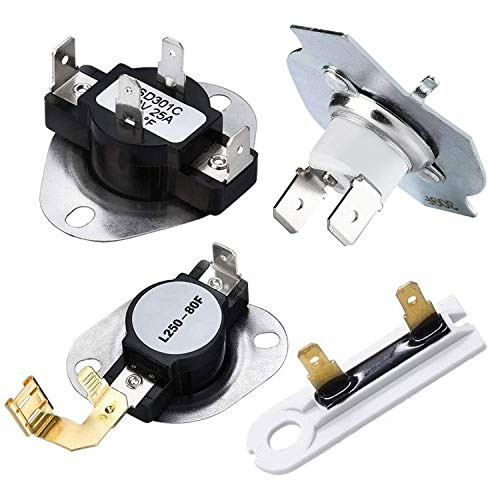

Upgrade 3387134 High-Limit Thermostat 3392519 Dryer Thermal Fuse 3977393 Cut-Off Switch 3977767 Cycling Thermostat - Fit for Whirl-pool Ken-more May-tag Dryer - Replaces PS345113 AP6008325
Package INCLUDE:
1 PC 3977767 dryer thermostat?High-limit Thermostat?
1 PC 3387134 dryer thermostat?Cycling Thermostat?
2 PC 3392519 dryer temperature fuse?Safety component?
1 PC 3977393 dryer thermal fuse?Thermal Cut-off Switch?
Fixes Symptoms:
Not heat enough or no heat at all;
Overheating?
Takes too much time drying clothes;
The timer cannot start?
3387134 Cycling Thermostat
Dryer cycling thermostat with internal bias heater. L155-25 (opens at 155F and closes at 130F).3387134 replaces WP3387134, 2011, 306910, 3387135, 3387139, ET187, WP3387134VP, 2893, AP6008270, PS11741405, EAP11741405
3977767 Dryer Thermostat
Dryer high limit thermostat, pushes onto the terminal of the heating element. Has one 1/4" male terminal, 1/4" female terminal, and one 3/16" male terminal. L221 3977767 Dryer Thermostat acts as safety mechanism that keeps the dryer from overheating. Once the dryer temperature reaches 221 degrees Farenheit, this piece will shut down power to the heating element until it drops by 80 degrees Farenheit.
The 3977393 Dryer Thermal Fuse
The 3977393 Dryer Thermal Fuse turns off the heating component when the dryer overheats, ensuring there is a consistent level of heat at all times. 3977393 replaces 279816, 279816VP, 3399848, 2651, AP3094244, PS334299, EAP334299
The WP3392519 thermal fuse
This fuse is located on the blower housing next to the blower fan. If the dryer overheats, the wp3392519 thermal fuse blows to cut off power to the dryer and/or stop the dryer from running. Dryer non resettable thermal fuse, 195-degree F, two 3/16" wire terminals. 3392519 replaces 80005, 694511, 3388651, ET401, G4AP0500, WP3392519VP, PS11741460, AP6008325, 2986, EAP11741460
