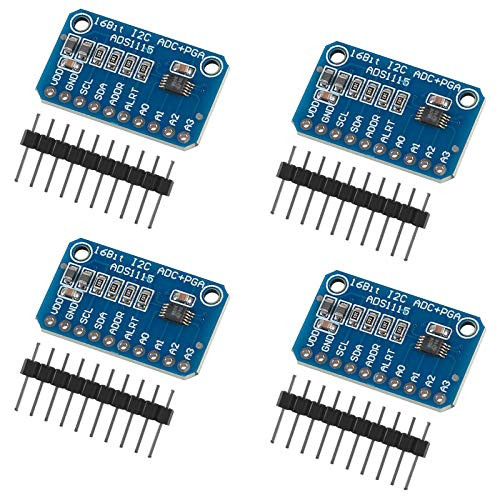

2pcs ADS1115 16 Bits 4 Channel Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High Prcision I2C IIC 2.0V to 5.5V Bits ADC Converter Development Board for Arduino and Raspberry

2pcs ADS1115 16 Bits 4 Channel Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High Prcision I2C IIC 2.0V to 5.5V Bits ADC Converter Development Board for Arduino and Raspberry Product Feature The ADS1113/4/5 are designed with precision power and low current consumption, which package is QFN-10 or MSOP-10. The ADS1113/4/5 can perform conversions at rates, INTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1115, I2C INTERFACE: Pin-Selectable Addresses offers input ranges from the supply to as low as. The ADS1115 included the automatically powers down function, portable instrumentation automatically powers down after a conversion and greatly reduces current consumption during idle. Product Parameter ADC Bit rate: 16 Bit Interface Type: I2C Size: 2mm* 1,5mm* 0,4mm Channels: 4 Channel AN0 AN1 AN2 AN3 Input voltage: 2.0v-5.5v Channel input voltage : 0-VDD Continuous Mode: Only 150?A Single-Shot Mode: Auto Shut Down Programmable data rate: 8sps-860sps Input range programmed control, 7 types input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B Package Including: 2 * ADS1115 Analog-to-Digital Converter 2 * Pin Header
