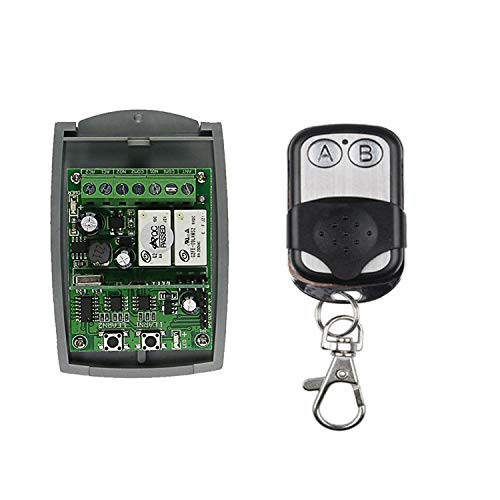

24V 2 Channels Remote Control Switch 24V 2CH Wireless 10A Relay Receiver Module Switch Switch Relay Module Transmitter Receiver (2X Remote Control 315)

Switch Features Wireless control switch, widely used in lighting control of smart home, remote control system, garage door, wireless modification of intercom doorbell, household appliance with wireless switch, etc. Description: 1.Transmitter Channel: 2 CH Remote Control Distance: 0-50m Encode: Fixed code, soldering Frequency:315/433 MHz Size: 68mm x 48mm x 15mm Power Supply: 1 X 12V/(23A battery) 2.Switch reciever Power Supply (Operating Voltage): DC 24V(22-26V) Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC Work Voltage Range of Relay: AC 110-240V or DC 0-28V sensitivity:-105 dBm Operating Temperature:-40'C~+80'C Work model: Momentary, Toggle(self-lock),Latching(inter-lock)(Change itby model Pin,momentary default) Work model: 1.Toggle/Self-Lock: Press->On; Press again->Off 2.Latched/Inter-Lock: Press->On; Press other button->Of 3.Momentary/Jog: Press and hold->On; Release->Off Add remote control method 1 Connector power 24V , press the switch board learn button 1-3s till LED lighting,after press controller button, till the switch LED lighting.. the relay will be ON or OFF. Remove control Code: 1 Connector the switch to 24V,Press the learning button for 8-10S, Till indicator light on to off, remote controller can not control the switch Package: 2x Transmitter (Battery include) 1 x Receiver (with Box)1X Manual
