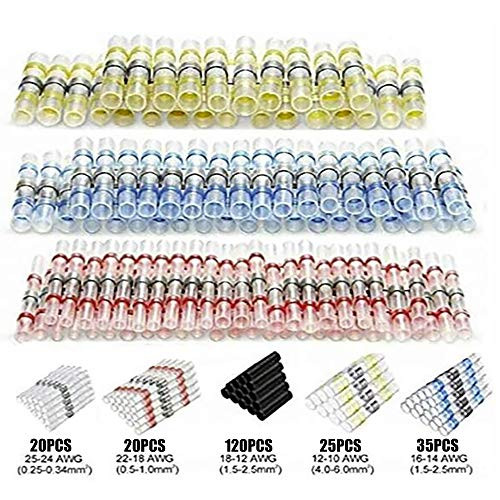

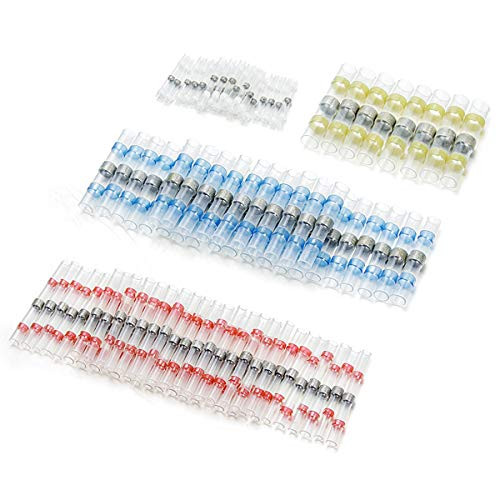

Camtek 220pcs Solder Seal Heat Shrink Wire Connectors.
Specification:
50 x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm²(A.W.G.:26-24).
70 x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14);
80 x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18);
20 x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)
Operating temperature range:
Minimum temperature for solder to melt: 138°C
Minimum shrink temperature: 80°C
Operating temperature :-55? - 125?
Shrink temperature : ?160?
Features:
Shrinkage ratio is 2:1
Solder and Hot Melt Adhesive inside can be perfectly Waterproof.
Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside
Waterproof Connectors would prevent wires from corrosion.
Transparent Sleeve of the butt connectors provide Visual Inspection.
No wire damage due to lower shrink temperature
Compliant with ROHS, ISO 9001:2008, SGS and CE standards.
Package 1 x 220pcs (Four Sizes/Colors) heat shrink connectors with reusable case
220PCS Heat Shrink Solder Connectors, Camtek Solder Seal Wire Connectors Solder Seal Butt Connectors Electrical Wire Terminals Insulated Waterproof Marine Automotive Copper Connectors Kit
Was:
$73.88
Now:
$36.94
- SKU:
- JA453366
- UPC:
- 796826338952
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
