1Pc Relay Network Ethernet Relay Controller Module Control Board LAN WAN Network Web Server with RJ 45 Interface 8 Channel Relay Module for Smart Home Remote Control

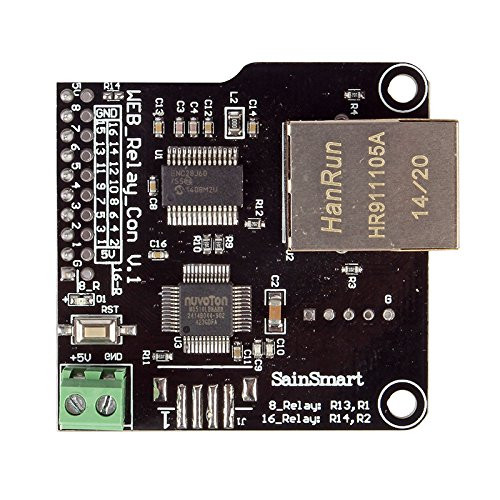

This is an Ethernet controller board  with 8-channel relay integrated.  You can realize remotely controlling 8 smart home devices at the same time, avoiding complicated wiring processes and saving time to accomplish your goal. It's fitted with RJ45 interface, via RJ45 telecommunications connection for network control. Supply core module detailed information, application program demo. Unique dual TCP connect control, corresponding with above trait, local as TCP server Specifications: Relay Size: 15*6*3cm/5.9*2.36*1.18" Default IP :192.168.1.4       prot:30000        http://192.168.1.4/30000 HTTP Comment: http://192.168.1.4/30000/00 : Relay-01 OFF http://192.168.1.4/30000/01 : Relay-01 ON http://192.168.1.4/30000/02 : Relay-02 OFF http://192.168.1.4/30000/03 : Relay-02 ON http://192.168.1.4/30000/04 : Relay-03 OFF http://192.168.1.4/30000/05 : Relay-03 ON ... http://192.168.1.4/30000/14 : Relay-8 OFF http://192.168.1.4/30000/15 : Relay-8 ON http://192.168.1.4/30000/41 : Enter http://192.168.1.4/30000/40 : Exit http://192.168.1.4/30000/42 : Next Page http://192.168.1.4/30000/43 : Next Page Package Includes: 1 x Ethernet Control Module with 8-Channel Relay
