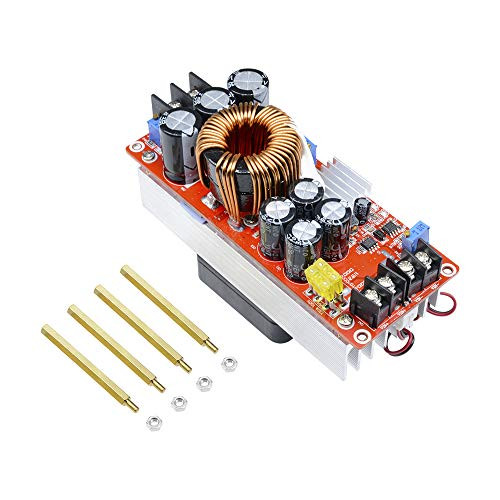

1500W 30A DC-DC Boost Converter Step-up Power Supply Module Constant Voltage Constant Current Module Board Card in 10~60V Out 12~90V

Specifications: Type: Non-isolated step-up module (BOOST) Input Voltage: DC10V to 60V Input Current: 30A(input voltage 10V to 30V)                             25A(input voltage 31V to 60V) Quiescent Current: 15mA(will increase when convert 12V to 20V) Output Voltage: 12V to 90V (adjustable, default is 19V) Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A) Constant Current Range: 0.8A to 20A(+/-0.3A) Reverse Input Protection: Yes (150A MOS) Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery) Operating Temperature: - 40? to +85 ?(if temperature is too high, please enhance heat dissipation) Frequency: 150KHz Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be) Input Over-current Protection: Yes (automatically protect when input is more than 35A, and power supply voltage will not increase) Short Circuit Protection: Yes(input 30A fuse) Wiring Method: Terminals(please use large current copper wire) Output Power = Input Voltage Current (If input 12V, the output power=12V*30A = 360W) Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04" Package Includes: 1 x Module
