Specification:
Material: Circuit board
Control signal: TTL
Rated load: AC125~250V/10A, DC28~30V/10A
Max. switch voltage: 250VAC, 30V
Operating Voltage:12V
Trigger Current: 5mA
Max. Current: 190mA
Size: 50mm * 26mm * 18.5mm
Module interface:
DC +: Positive Power (VCC)
DC-: Negative power supply (GND)
IN: High or low level control relay
Relay output:
NO: Relay normally open interface
COM: Universal Interface Relay
NC: Relay normally closed interface
High and low trigger options:
It is a low level trigger when the jumper is connected to the low pin.
It is a high level trigger when the jumper is connected to the high pin.
LED Indicator Light:
Power Indicator: Green
Indicator of Relay Status: Red

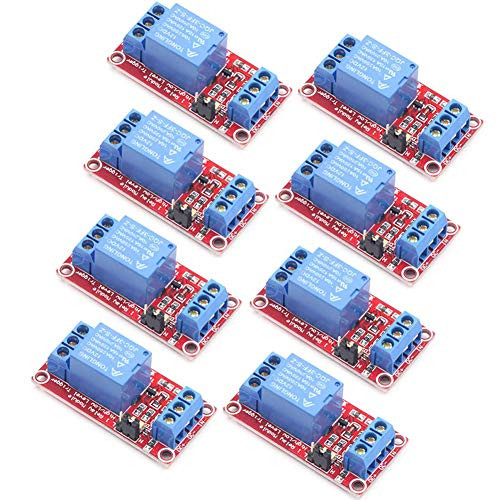

12v Relay 1 Channel Relay Module Board with OPTO Isolation Support High and Low Level Trigger
Was:
$105.78
Now:
$52.89
(No reviews yet)
Write a Review
Write a Review
12v Relay 1 Channel Relay Module Board with OPTO Isolation Support High and Low Level Trigger
- SKU:
- UTW77490
- UPC:
- 782912739147
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
Add to Cart
