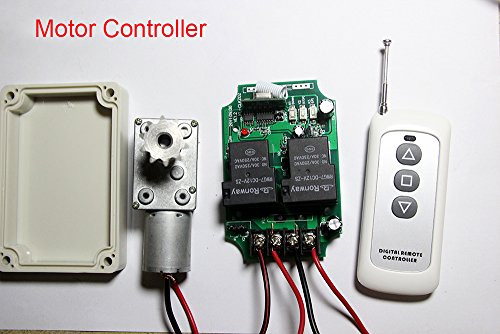

12V 24V 36V 10A Remote Control Motor Forward and Reverse Switch Roller Shutter Door gate Motor Lifter Magnetic Valve Drive Control Remote Control Universal Garage Door for Linear Actuator Motor

delivery 1 x receiver 1x remote control with battery (If you need more remotes, please let us know) Before shipment, we have paired the code, you can directly follow the wiring diagram to connect, if you do not know how to connect, you can contact our technicians. We will reply you within 24 hours. Receiver sensitivity: : -105Db Working Voltage : dc12-48V Max Load:10A Relay, have better load less than 5A Working temperature : -10'C - +60'C Output way : Momentary. Toggle. Latched is Adjustable by the Jumper on the Receiver . Receiver Board Size:68*50*19mm Case Size:75*58*15mm Code type :Learning code About Working way Momentary: Press and hold -> On; Release -> Off. Latched: Press -> On; Press other button -> Off. Set control mode Momentary: jumper doesn't connect Latched: jumper in pin L and S. Learning Code : (1) Press the learning button for 1 time,the learning indicator flashes slowly,Then press the transmitter button up (first button default for forward) ,the learning indicator flash 5 times and OFF,It mean the first button learning Successfully (2) Press the learning button for 2 times,the learning indicator flashes slowly,Then press the transmitter button down (second button default for forward) ,the learning indicator flash 5 times and OFF,It mean the second button learning Successfully (Third button default for stop ,When the jumper set for Latched) Clear code Press the learning button on the receiver for 5s,the learning indicator will flash 3 times and OFF , It mean all the transmitter code in the receiver have been cleared.
