Specifications: Transmitter Battery Type: 1pc 27A 12V battery(not included) Remote Distance: 20-30m(Theoretical value) Receiver Input Voltage: DC 12V Operating Frequency: 433MHZ Operation Way: Inching, Self-locking Coding Way: Intelligent Learning Operating Temperature: -40¡ãC ~ +80¡ãC Output Current: ¡Ü 10A Receiver Sensitivity: ¡Ý-105dBm Output Type: 1 Relay Signal Output Factory Default: Self-locking Code:Learning Code (jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched) Board Dimension: 45x30.5x17mm Case Dimension: 63x37x23mm Output Working Way: Jog/Non-Latched: press one button is working /ON. Loosen your finger on the same button is stop/OFF. Self -lock/Self-Latched: press one button for one time is working/ON.press the same button again is stop/OFF. Inter-lock /Latched: press one button is working/ON,press another button is stop/OFF. Learning Method: Press the learning button 5 seconds, the indicator light off. Then press any buttons of the remote control to transmite signal. It means learning successfully when the indicator flash 3 times until the indicator light on. Remove Code: press the learning button about 8 seconds, the indicator turn on to off to on, it means the information that you keep have been removed successfully. Package Included: 1 Remote Transmitter (without battery) 2 Receivers

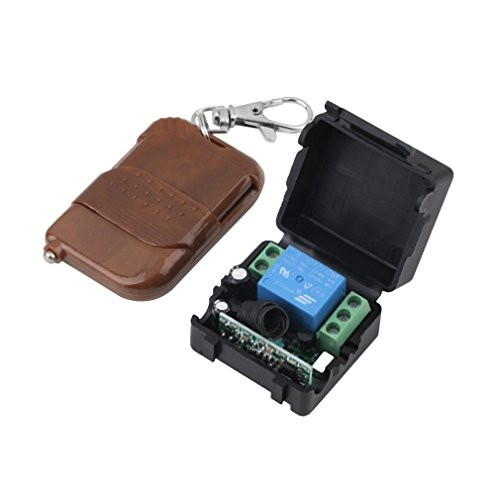

12V 10A One Channel Relay RF Wireless Remote Control 2 Receivers Momentary Switch
Was:
$83.68
Now:
$41.84
- SKU:
- TQW168438
- UPC:
- 701385475130
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
