Instruction:
Welcome to use the 12CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 12 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.
Performance:
Input Power: DC5V-DC24V
Maximum load current: 5A/CHx12
Maximum power load: 300W (5V) 720W (12V)1440W (24V)
Output gray level: 256
Input Signal: DMX512/1990
Output signal: 12 channels Constant PWM
Output DMX : 12 channels
DMX512 socket standard RJ45
Package Included:
1 x DMX 512 Decoder
1 x User Manual
1 x DMX cable
Installation Notes:
? This kind of controller works only under DC5V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.
? The UTP wire is connected hand in hand to make the cable, when two or more controller connected.
? The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.
? Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.
?Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely

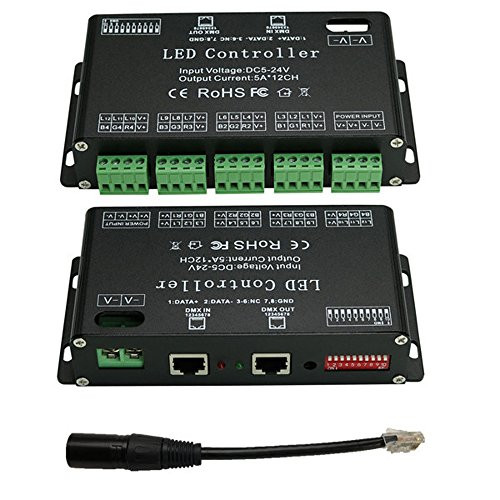

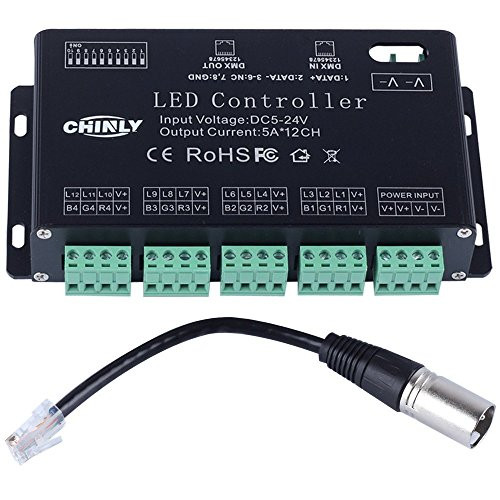

12 Channel DMX Decoder AZIMOM RGB LED Light Strip Controller dmx512 Decoder Dimmer Driver DC5V 24V LED Module Light
Was:
$127.00
Now:
$63.50
- SKU:
- P205323
- UPC:
- 769407393732
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
