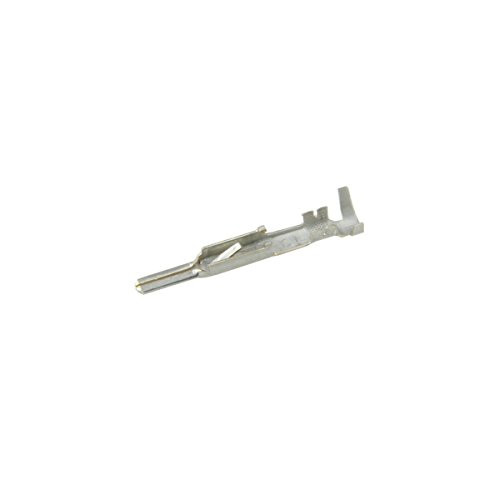

10 Ga. Male Metri-Pack Terminals, 480 Series, Sealed #12052172 Metri-Pack terminals are different from Weather-Pack terminals in that the male terminals have flat pins, similar to a quick disconnect, rather than Weather-Pack's round pins. Easily determine the Metri-Pack series by measuring the width of the flat pin. Metri-Pack 150 series = 1.5 mm pin width. Metri-Pack 280 = 2.8 mm pin width. Metri-Pack 480 = 4.8 mm pin width. Metri-Pack 630 = 6.3 mm pin width. These sealed terminals require a seal for each terminal and sealed housings. Terminals require two crimps (terminal to wire strands, terminal to seal to wire insulation). A proper crimping tool is required. For heavier usage, use a tool that performs both crimps at the same time.
10 Ga. Sealed Male Metri-Pack 480 Series Terminals #12052172 - (Pack of 25)
Was:
$97.04
Now:
$48.52
- SKU:
- ZDT731785
- UPC:
- 1000135386580
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
