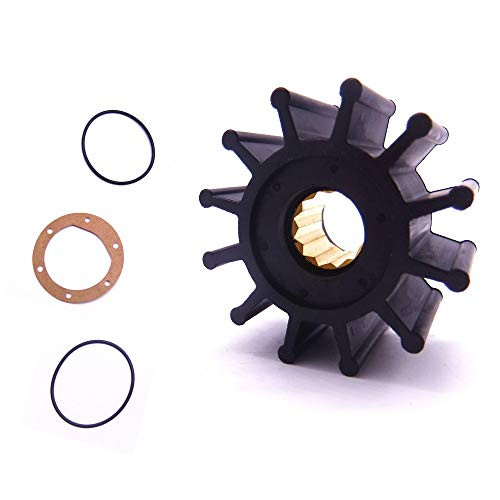

09-1027B 1210-0001 Inboard Engine Water Pump Impeller with Gasket for Jabsco / Johnson
Dimentions:
2-1/4" Diameter x 1-1/4" Wide, 5/8" shaft diameter, 12 Pt. Spline Drive
Number of Blades: 12
Brass Hub
Height: 31mm / 1 7/32"
External Impeller Overall Diameter: 56.5mm / 2 7/32"
Internal Shaft Insert Diameter: 15mm / 19/32"
Include the gasket as show on the picture
Replacement :
Fit Inboard Engine Impeller Jabsco 1210-0001
Fit Inboard Engine Impeller Johnson 09-1027B / 09-1027B-1 /OMC 3588256
Fit Inboard Engine Impeller Sierra 18-3081,
Fit Inboard Engine Impeller SIE-18-3081
Fit Inboard Engine Impeller GLM-89540
Fit Inboard Engine Impeller Mallory-9-45703
Fit Inboard Engine Impeller Volvo-Penta 825940, 860203, 3855546, 38582563862281, 21213660, 876243 , 3862567, 3856039 , 877400, 3862567 , 875811-2, 3856029, 21951346
Fit Inboard Engine Impeller Yanmar 129470-42530
Applications:
Fits pump models 1673-0001,1673-9001, 1673-9051, 1673-0003, 1673-1001, 1673-1003, 1673-9003, 3270-0001, 3270-0003, 3290-9001, 3380-0001, 3480-9002, 3480-9011,
Volvo AQ 150A, B, 175A, 200C, D, F, 211A, 225C, D, F, 231A, 255A, B, 260A, 271A, C, 290A, 311A, B, 430A, B, 431A, 500A, B, 501A, B, 570A, 571A, 572A
Indmar F5b Raw Water Pumps
